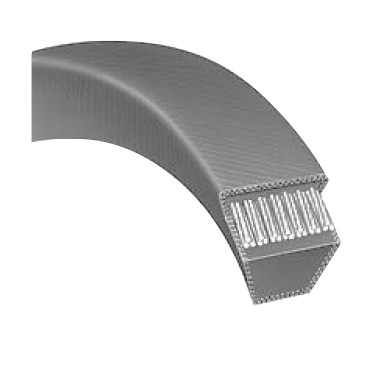

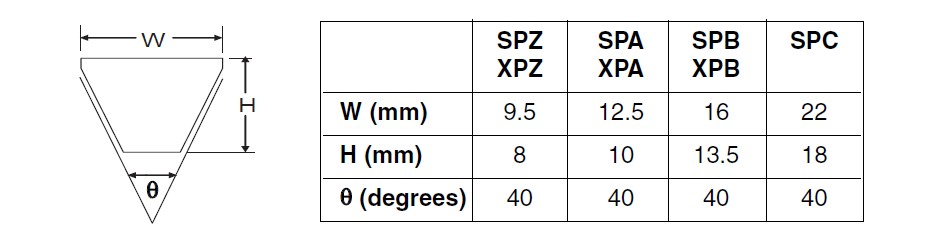

產品外觀與截面尺寸
產品規格
| 規格 | 有效長度(mm) |
|---|---|
| SPZ-487 | 487 |
| SPZ-512 | 512 |
| SPZ-530 | 530 |
| SPZ-545 | 545 |
| SPZ-560 | 560 |
| SPZ-562 | 562 |
| SPZ-580 | 580 |
| SPZ-587 | 587 |
| SPZ-600 | 600 |
| SPZ-610 | 610 |
| SPZ-612 | 612 |
| SPZ-630 | 630 |
| SPZ-637 | 637 |
| SPZ-650 | 650 |
| SPZ-662 | 662 |
| SPZ-670 | 670 |
| SPZ-687 | 687 |
| SPZ-697 | 697 |
| SPZ-698 | 698 |
| SPZ-700 | 700 |
| SPZ-710 | 710 |
| SPZ-720 | 720 |
| SPZ-722 | 722 |
| SPZ-730 | 730 |
| SPZ-737 | 737 |
| SPZ-750 | 750 |
| SPZ-760 | 760 |
| SPZ-762 | 762 |
| SPZ-772 | 772 |
| SPZ-775 | 775 |
| SPZ-787 | 787 |
| SPZ-800 | 800 |
| SPZ-812 | 812 |
| SPZ-825 | 825 |
| SPZ-830 | 830 |
| SPZ-837 | 837 |
| SPZ-850 | 850 |
| SPZ-860 | 860 |
| SPZ-862 | 862 |
| SPZ-875 | 875 |
| SPZ-887 | 887 |
| SPZ-900 | 900 |
| SPZ-912 | 912 |
| SPZ-925 | 925 |
| SPZ-937 | 937 |
| SPZ-940 | 940 |
| SPZ-950 | 950 |
| SPZ-962 | 962 |
| SPZ-967 | 967 |
| SPZ-975 | 975 |
| SPZ-987 | 987 |
| SPZ-990 | 990 |
| SPZ-1000 | 1000 |
| SPZ-1010 | 1010 |
| SPZ-1012 | 1012 |
| SPZ-1020 | 1020 |
| SPZ-1024 | 1024 |
| SPZ-1025 | 1025 |
| SPZ-1030 | 1030 |
| SPZ-1037 | 1037 |
| SPZ-1040 | 1040 |
| SPZ-1047 | 1047 |
| SPZ-1057 | 1057 |
| SPZ-1060 | 1060 |
| SPZ-1062 | 1062 |
| SPZ-1077 | 1077 |
| SPZ-1080 | 1080 |
| SPZ-1087 | 1087 |
| SPZ-1090 | 1090 |
| SPZ-1100 | 1100 |
| SPZ-1105 | 1105 |
| SPZ-1112 | 1112 |
| SPZ-1120 | 1120 |
| SPZ-1125 | 1125 |
| SPZ-1130 | 1130 |
| SPZ-1132 | 1132 |
| SPZ-1137 | 1137 |
| SPZ-1140 | 1140 |
| SPZ-1150 | 1150 |
| SPZ-1162 | 1162 |
| SPZ-1168 | 1168 |
| SPZ-1170 | 1170 |
| SPZ-1180 | 1180 |
| SPZ-1187 | 1187 |
| SPZ-1200 | 1200 |
| SPZ-1202 | 1202 |
| SPZ-1212 | 1212 |
| SPZ-1215 | 1215 |
| SPZ-1220 | 1220 |
| SPZ-1222 | 1222 |
| SPZ-1232 | 1232 |
| SPZ-1237 | 1237 |
| SPZ-1240 | 1240 |
| SPZ-1250 | 1250 |
| SPZ-1260 | 1260 |
| SPZ-1262 | 1262 |
| SPZ-1265 | 1265 |
| SPZ-1270 | 1270 |
| SPZ-1280 | 1280 |
| SPZ-1282 | 1282 |
| SPZ-1285 | 1285 |
| SPZ-1287 | 1287 |
| SPZ-1300 | 1300 |
| SPZ-1312 | 1312 |
| SPZ-1320 | 1320 |
| SPZ-1337 | 1337 |
| SPZ-1340 | 1340 |
| SPZ-1347 | 1347 |
| SPZ-1350 | 1350 |
| SPZ-1357 | 1357 |
| SPZ-1360 | 1360 |
| SPZ-1362 | 1362 |
| SPZ-1382 | 1382 |
| SPZ-1387 | 1387 |
| SPZ-1400 | 1400 |
| SPZ-1412 | 1412 |
| SPZ-1415 | 1415 |
| SPZ-1420 | 1420 |
| SPZ-1437 | 1437 |
| SPZ-1450 | 1450 |
| SPZ-1460 | 1460 |
| SPZ-1462 | 1462 |
| SPZ-1467 | 1467 |
| SPZ-1470 | 1470 |
| SPZ-1487 | 1487 |
| SPZ-1500 | 1500 |
| SPZ-1512 | 1512 |
| SPZ-1520 | 1520 |
| SPZ-1525 | 1525 |
| SPZ-1537 | 1537 |
| SPZ-1550 | 1550 |
| SPZ-1560 | 1560 |
| SPZ-1562 | 1562 |
| SPZ-1587 | 1587 |
| SPZ-1590 | 1590 |
| SPZ-1600 | 1600 |
| SPZ-1612 | 1612 |
| SPZ-1620 | 1620 |
| SPZ-1622 | 1622 |
| SPZ-1632 | 1632 |
| SPZ-1637 | 1637 |
| SPZ-1650 | 1650 |
| SPZ-1657 | 1657 |
| SPZ-1662 | 1662 |
| SPZ-1675 | 1675 |
| SPZ-1687 | 1687 |
| SPZ-1692 | 1692 |
| SPZ-1700 | 1700 |
| SPZ-1712 | 1712 |
| SPZ-1720 | 1720 |
| SPZ-1725 | 1725 |
| SPZ-1732 | 1732 |
| SPZ-1737 | 1737 |
| SPZ-1750 | 1750 |
| SPZ-1762 | 1762 |
| SPZ-1787 | 1787 |
| SPZ-1797 | 1797 |
| SPZ-1800 | 1800 |
| SPZ-1812 | 1812 |
| SPZ-1816 | 1816 |
| SPZ-1832 | 1832 |
| SPZ-1837 | 1837 |
| SPZ-1841 | 1841 |
| SPZ-1850 | 1850 |
| SPZ-1857 | 1857 |
| SPZ-1862 | 1862 |
| SPZ-1867 | 1867 |
| SPZ-1887 | 1887 |
| SPZ-1900 | 1900 |
| SPZ-1912 | 1912 |
| SPZ-1917 | 1917 |
| SPZ-1920 | 1920 |
| SPZ-1925 | 1925 |
| SPZ-1932 | 1932 |
| SPZ-1937 | 1937 |
| SPZ-1943 | 1943 |
| SPZ-1950 | 1950 |
| SPZ-1957 | 1957 |
| SPZ-1962 | 1962 |
| SPZ-1968 | 1968 |
| SPZ-1987 | 1987 |
| SPZ-2000 | 2000 |
| SPZ-2020 | 2020 |
| SPZ-2030 | 2030 |
| SPZ-2032 | 2032 |
| SPZ-2037 | 2037 |
| SPZ-2044 | 2044 |
| SPZ-2060 | 2060 |
| SPZ-2070 | 2070 |
| SPZ-2082 | 2082 |
| SPZ-2084 | 2084 |
| SPZ-2087 | 2087 |
| SPZ-2095 | 2095 |
| SPZ-2100 | 2100 |
| SPZ-2120 | 2120 |
| SPZ-2137 | 2137 |
| SPZ-2140 | 2140 |
| SPZ-2150 | 2150 |
| SPZ-2160 | 2160 |
| SPZ-2162 | 2162 |
| SPZ-2180 | 2180 |
| SPZ-2187 | 2187 |
| SPZ-2200 | 2200 |
| SPZ-2212 | 2212 |
| SPZ-2220 | 2220 |
| SPZ-2230 | 2230 |
| SPZ-2240 | 2240 |
| SPZ-2260 | 2260 |
| SPZ-2267 | 2267 |
| SPZ-2280 | 2280 |
| SPZ-2287 | 2287 |
| SPZ-2300 | 2300 |
| SPZ-2320 | 2320 |
| SPZ-2360 | 2360 |
| SPZ-2387 | 2387 |
| SPZ-2400 | 2400 |
| SPZ-2410 | 2410 |
| SPZ-2437 | 2437 |
| SPZ-2450 | 2450 |
| SPZ-2460 | 2460 |
| SPZ-2487 | 2487 |
| SPZ-2500 | 2500 |
| SPZ-2527 | 2527 |
| SPZ-2540 | 2540 |
| SPZ-2560 | 2560 |
| SPZ-2575 | 2575 |
| SPZ-2580 | 2580 |
| SPZ-2582 | 2582 |
| SPZ-2587 | 2587 |
| SPZ-2600 | 2600 |
| SPZ-2620 | 2620 |
| SPZ-2650 | 2650 |
| SPZ-2670 | 2670 |
| SPZ-2675 | 2675 |
| SPZ-2690 | 2690 |
| SPZ-2700 | 2700 |
| SPZ-2717 | 2717 |
| SPZ-2720 | 2720 |
| SPZ-2725 | 2725 |
| SPZ-2730 | 2730 |
| SPZ-2732 | 2732 |
| SPZ-2750 | 2750 |
| SPZ-2800 | 2800 |
| SPZ-2840 | 2840 |
| SPZ-2880 | 2880 |
| SPZ-2882 | 2882 |
| SPZ-2900 | 2900 |
| SPZ-2950 | 2950 |
| SPZ-2990 | 2990 |
| SPZ-3000 | 3000 |
| SPZ-3075 | 3075 |
| SPZ-3150 | 3150 |
| SPZ-3170 | 3170 |
| SPZ-3250 | 3250 |
| SPZ-3340 | 3340 |
| SPZ-3350 | 3350 |
| SPZ-3550 | 3550 |
| SPZ-3600 | 3600 |
| SPZ-3750 | 3750 |
| SPZ-3810 | 3810 |
| SPZ-4000 | 4000 |
| SPZ-4500 | 4500 |
模具列表不定期更新，設計前請先聯絡確認
