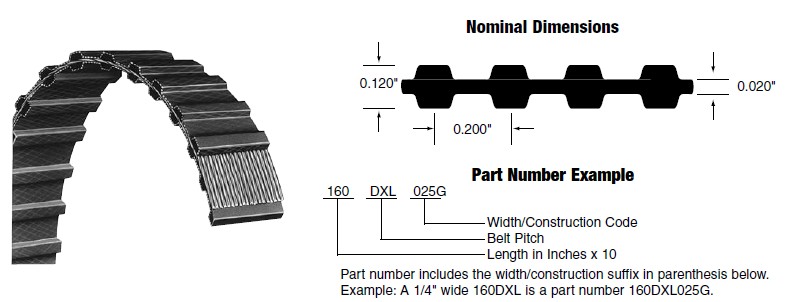

尺寸與型號表示
產品規格
品牌：B-BANDO G-GATES T-TIMKEN
| 規格 | 長度(in) | 齒數 | B | G | T |
|---|---|---|---|---|---|
| 136-DXL | 13.6 | 68 | • | ||
| 142-DXL | 14.2 | 71 | • | ||
| 146-DXL | 14.6 | 73 | • | ||
| 148-DXL | 14.8 | 74 | • | ||
| 150-DXL | 15.0 | 75 | • | ||
| 152-DXL | 15.2 | 76 | • | ||
| 154-DXL | 15.4 | 77 | • | ||
| 156-DXL | 15.6 | 78 | • | ||
| 158-DXL | 15.8 | 79 | • | ||
| 160-DXL | 16.0 | 80 | • | • | |
| 162-DXL | 16.2 | 81 | • | • | |
| 164-DXL | 16.4 | 82 | • | • | |
| 166-DXL | 16.6 | 83 | • | • | |
| 168-DXL | 16.8 | 84 | • | ||
| 170-DXL | 17.0 | 85 | • | • | |
| 172-DXL | 17.2 | 86 | • | • | |
| 174-DXL | 17.4 | 87 | • | • | |
| 176-DXL | 17.6 | 88 | • | • | |
| 178-DXL | 17.8 | 89 | • | • | |
| 180-DXL | 18.0 | 90 | • | • | |
| 182-DXL | 18.2 | 91 | • | • | |
| 184-DXL | 18.4 | 92 | • | • | |
| 188-DXL | 18.8 | 94 | • | • | |
| 190-DXL | 19.0 | 95 | • | • | |
| 192-DXL | 19.2 | 96 | • | ||
| 194-DXL | 19.4 | 97 | • | • | |
| 196-DXL | 19.6 | 98 | • | • | |
| 198-DXL | 19.8 | 99 | • | • | |
| 200-DXL | 20.0 | 100 | • | • | • |
| 202-DXL | 20.2 | 101 | • | • | • |
| 204-DXL | 20.4 | 102 | • | ||
| 206-DXL | 20.6 | 103 | • | • | • |
| 208-DXL | 20.8 | 104 | • | • | |
| 210-DXL | 21.0 | 105 | • | • | • |
| 212-DXL | 21.2 | 106 | • | • | • |
| 214-DXL | 21.4 | 107 | • | • | • |
| 216-DXL | 21.6 | 108 | • | ||
| 218-DXL | 21.8 | 109 | • | • | |
| 220-DXL | 22.0 | 110 | • | • | • |
| 222-DXL | 22.2 | 111 | • | ||
| 224-DXL | 22.4 | 112 | • | • | |
| 226-DXL | 22.6 | 113 | • | ||
| 228-DXL | 22.8 | 114 | • | • | • |
| 230-DXL | 23.0 | 115 | • | • | • |
| 234-DXL | 23.4 | 117 | • | • | • |
| 236-DXL | 23.6 | 118 | • | ||
| 240-DXL | 24.0 | 120 | • | • | • |
| 244-DXL | 24.4 | 122 | • | • | • |
| 248-DXL | 24.8 | 124 | • | • | • |
| 250-DXL | 25.0 | 125 | • | • | • |
| 256-DXL | 25.6 | 128 | • | ||
| 258-DXL | 25.8 | 129 | • | ||
| 260-DXL | 26.0 | 130 | • | • | • |
| 262-DXL | 26.2 | 131 | • | ||
| 264-DXL | 26.4 | 132 | • | ||
| 266-DXL | 26.6 | 133 | • | • | |
| 270-DXL | 27.0 | 135 | • | • | • |
| 274-DXL | 27.4 | 137 | • | ||
| 276-DXL | 27.6 | 138 | • | • | • |
| 278-DXL | 27.8 | 139 | • | ||
| 280-DXL | 28.0 | 140 | • | • | • |
| 282-DXL | 28.2 | 141 | • | • | |
| 286-DXL | 28.6 | 143 | • | ||
| 290-DXL | 29.0 | 145 | • | • | • |
| 298-DXL | 29.8 | 149 | • | ||
| 300-DXL | 30.0 | 150 | • | • | • |
| 302-DXL | 30.2 | 151 | • | ||
| 304-DXL | 30.4 | 152 | • | ||
| 306-DXL | 30.6 | 153 | • | ||
| 310-DXL | 31.0 | 155 | • | • | • |
| 314-DXL | 31.4 | 157 | • | ||
| 316-DXL | 31.6 | 158 | • | ||
| 320-DXL | 32.0 | 160 | • | • | • |
| 322-DXL | 32.2 | 161 | • | • | • |
| 326-DXL | 32.6 | 163 | • | ||
| 330-DXL | 33.0 | 165 | • | • | • |
| 332-DXL | 33.2 | 166 | • | ||
| 340-DXL | 34.0 | 170 | • | • | • |
| 344-DXL | 34.4 | 172 | • | • | |
| 348-DXL | 34.8 | 174 | • | • | • |
| 350-DXL | 35.0 | 175 | • | ||
| 352-DXL | 35.2 | 176 | • | • | • |
| 356-DXL | 35.6 | 178 | • | • | • |
| 360-DXL | 36.0 | 180 | • | • | • |
| 362-DXL | 36.2 | 181 | • | ||
| 364-DXL | 36.4 | 182 | • | • | • |
| 370-DXL | 37.0 | 185 | • | • | |
| 372-DXL | 37.2 | 186 | • | • | • |
| 376-DXL | 37.6 | 188 | • | • | • |
| 380-DXL | 38.0 | 190 | • | • | |
| 384-DXL | 38.4 | 192 | • | • | • |
| 386-DXL | 38.6 | 193 | • | • | |
| 388-DXL | 38.8 | 194 | • | ||
| 390-DXL | 39.0 | 195 | • | • | • |
| 392-DXL | 39.2 | 196 | • | ||
| 396-DXL | 39.6 | 198 | • | • | |
| 400-DXL | 40.0 | 200 | • | • | • |
| 404-DXL | 40.4 | 202 | • | ||
| 408-DXL | 40.8 | 204 | • | ||
| 412-DXL | 41.2 | 206 | • | • | |
| 414-DXL | 41.4 | 207 | • | ||
| 420-DXL | 42.0 | 210 | • | ||
| 424-DXL | 42.4 | 212 | • | • | • |
| 430-DXL | 43.0 | 215 | • | • | |
| 432-DXL | 43.2 | 216 | • | ||
| 434-DXL | 43.4 | 217 | • | ||
| 444-DXL | 44.4 | 222 | • | ||
| 450-DXL | 45.0 | 225 | • | • | • |
| 454-DXL | 45.4 | 227 | • | ||
| 456-DXL | 45.6 | 228 | • | ||
| 460-DXL | 46.0 | 230 | • | • | • |
| 470-DXL | 47.0 | 235 | • | • | |
| 480-DXL | 48.0 | 240 | • | ||
| 490-DXL | 49.0 | 245 | • | • | • |
| 492-DXL | 49.2 | 246 | • | • | |
| 496-DXL | 49.6 | 248 | • | ||
| 498-DXL | 49.8 | 249 | • | • | |
| 510-DXL | 51.0 | 255 | • | ||
| 514-DXL | 51.4 | 257 | • | ||
| 522-DXL | 52.2 | 261 | • | ||
| 532-DXL | 53.2 | 266 | • | ||
| 540-DXL | 54.0 | 270 | • | • | |
| 560-DXL | 56.0 | 280 | • | • | |
| 564-DXL | 56.4 | 282 | • | • | |
| 566-DXL | 56.6 | 283 | • | ||
| 574-DXL | 57.4 | 287 | • | ||
| 580-DXL | 58.0 | 290 | • | • | |
| 592-DXL | 59.2 | 296 | • | ||
| 608-DXL | 60.8 | 304 | • | ||
| 612-DXL | 61.2 | 306 | • | ||
| 630-DXL | 63.0 | 315 | • | • | |
| 648-DXL | 64.8 | 324 | • | ||
| 670-DXL | 67.0 | 335 | • | ||
| 672-DXL | 67.2 | 336 | • | ||
| 690-DXL | 69.0 | 345 | • | ||
| 810-DXL | 81.0 | 405 | • | ||
| 860-DXL | 86.0 | 430 | • | ||
| 888-DXL | 88.8 | 444 | • |
模具列表不定期更新，設計前請先聯絡確認
