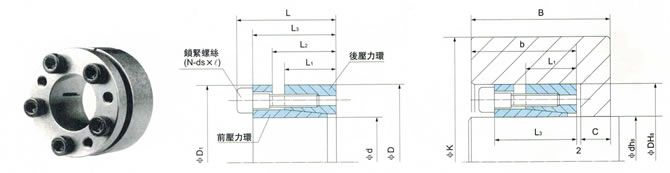

產品圖與尺寸
‧輪殼與軸接觸面聯結組立時，輪殼與軸安裝位置會有少許相對應移動。
尺寸、性能
| 規格 | L mm | L 3 mm | L 2 mm | L 1 mm | D 1 mm | 可傳遞力矩 | 面壓力 | 鎖緊螺絲 | 輪殻材料Ố 0.2 與外徑ΦK之最小值(mm) | 重量 g | J x10 -5 Kg.m 2 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150※ | 200※ | 250※ | 300※ | 350※ | 400※ | |||||||||||||||
| SCE201SH dxD mm | 扭力 (M) N • m | 推力 (F) KN | 軸 (P S ) MPa | 孔 (P B ) Mpa | 個數 (N) | 尺寸 (ds X l ) | 扭力 (Ms) N.m | FC250 | FC350 SS400 SC410 S10C-N | FCD400 SS490 SC480 S20C-N | FCD450 S35C-N | FCD500 S45C-N | FCD600 S55C-N | |||||||
| 19x47 | 38 | 32 | 24 | 20 | 46 | 300 | 31.0 | 304 | 98 | 4 | M6x25 | 16 | 72 | 64 | 60 | 58 | 56 | 55 | 325 | 10 |
| 20x47 | " | " | " | " | " | 310 | " | 288 | " | " | " | " | " | " | " | " | " | " | 315 | 10 |
| 22x47 | " | " | " | " | " | 340 | " | 262 | " | " | " | " | " | " | " | " | " | " | 305 | 10 |
| 24x50 | " | " | " | " | " | 470 | 39.0 | 300 | 115 | 5 | " | " | 83 | 72 | 67 | 64 | 62 | 60 | 345 | 13 |
| 25x50 | " | " | " | " | " | 490 | " | 288 | " | " | " | " | " | " | " | " | " | " | 335 | 13 |
| 28x55 | " | " | " | " | 54 | 550 | " | 257 | 105 | " | " | " | 87 | 77 | 72 | 69 | 66 | 65 | 395 | 19 |
| 30x55 | " | " | " | " | " | 590 | " | 240 | " | " | " | " | " | " | " | " | " | " | 375 | 18 |
| 32x60 | " | " | " | " | 59 | 750 | 46.5 | 270 | 115 | 6 | " | " | 99 | 86 | 80 | 76 | 74 | 72 | 455 | 26 |
| 35x60 | " | " | " | " | " | 820 | " | 247 | " | " | " | " | " | " | " | " | " | " | 420 | 25 |
| 38x65 | " | " | " | " | 64 | 890 | " | 227 | 106 | " | " | " | 103 | 91 | 85 | 81 | 79 | 77 | 490 | 35 |
| 40x65 | " | " | " | " | " | 930 | " | 216 | " | " | " | " | " | " | " | " | " | " | 465 | 34 |
| 42x75 | 48 | 40 | 29 | 24 | 74 | 1810 | 86.0 | 319 | 142 | " | M8x30 | 39 | 143 | 119 | 107 | 101 | 97 | 94 | 855 | 79 |
| 45x75 | " | " | " | " | " | 1940 | " | 298 | " | " | " | " | " | " | " | " | " | " | 795 | 77 |
| 48x80 | " | " | " | " | 79 | 2070 | " | 279 | 133 | " | " | " | 145 | 123 | 112 | 106 | 101 | 98 | 905 | 98 |
| 50x80 | " | " | " | " | " | 2160 | " | 268 | " | " | " | " | " | " | " | " | " | " | 860 | 96 |
| 55 x 85 | " | " | " | " | 84 | 2770 | 100 | 284 | 146 | 7 | " | " | 166 | 136 | 123 | 115 | 110 | 107 | 935 | 120 |
| 60x90 | " | " | " | " | 89 | 3020 | " | 260 | 138 | " | " | 168 | 140 | 127 | 120 | 115 | 112 | 1000 | 146 | |
| 65x95 | " | " | " | " | 94 | 3740 | 115 | 275 | 149 | 8 | " | " | 189 | 154 | 139 | 130 | 124 | 120 | 1070 | 178 |
| 70x110 | 62 | 52 | 37 | 30 | 109 | 5540 | 158 | 290 | 142 | 7 | M10x40 | 75 | 210 | 174 | 157 | 148 | 142 | 137 | 2060 | 434 |
| 75x115 | " | " | " | " | 114 | 5940 | " | 270 | 135 | " | " | " | 211 | 177 | 161 | 152 | 146 | 142 | 2170 | 512 |
| 80x120 | " | " | " | " | 119 | 6330 | " | 254 | 130 | " | " | " | 214 | 182 | 166 | 157 | 151 | 147 | 2280 | 592 |
| 85 x 125 | " | " | " | " | 124 | 7690 | 180 | 273 | 143 | 8 | " | " | 240 | 198 | 179 | 168 | 161 | 156 | 2400 | 688 |
| 90x130 | " | " | " | " | 129 | 8140 | " | 258 | 137 | " | " | " | 241 | 202 | 183 | 173 | 166 | 161 | 2510 | 783 |
| 95x135 | " | " | " | " | 134 | 10740 | 225 | 305 | 165 | 10 | " | " | 299 | 233 | 206 | 191 | 181 | 174 | 2650 | 898 |
| 100x145 | 74 | 64 | 46 | 39 | 144 | 11300 | " | 209 | 118 | " | " | " | 243 | 210 | 194 | 185 | 179 | 174 | 3950 | 1535 |
*輪殻内徑表面受面壓（PB)時的必要最小外徑ΦK.(B≥2xL1,b≥L3,C≥d/2)
*傳遞扭力與推力為最大值。 *輪瞉外徑最小值。 ΦK不含安全係數
