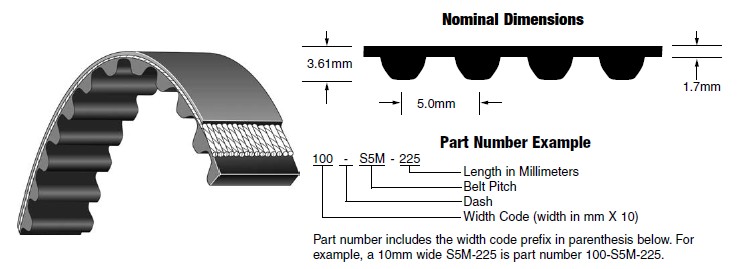

尺寸與型號表示
產品規格
品牌：B-BANDO T-TIMKEN
| 規格 | 長度(mm) | 齒數 | B | T |
|---|---|---|---|---|
| S5M-150 | 150.0 | 30 | • | |
| S5M-200 | 200.0 | 40 | • | |
| S5M-225 | 225.0 | 45 | • | |
| S5M-230 | 230.0 | 46 | • | |
| S5M-250 | 250.0 | 50 | • | |
| S5M-255 | 255.0 | 51 | • | • |
| S5M-260 | 260.0 | 52 | • | |
| S5M-265 | 265.0 | 53 | • | |
| S5M-270 | 270.0 | 54 | • | |
| S5M-275 | 275.0 | 55 | • | |
| S5M-285 | 285.0 | 57 | • | • |
| S5M-295 | 295.0 | 59 | • | • |
| S5M-300 | 300.0 | 60 | • | |
| S5M-305 | 305.0 | 61 | • | |
| S5M-320 | 320.0 | 64 | • | • |
| S5M-325 | 325.0 | 65 | • | • |
| S5M-340 | 340.0 | 68 | • | • |
| S5M-345 | 345.0 | 69 | • | |
| S5M-350 | 350.0 | 70 | • | • |
| S5M-360 | 360.0 | 72 | • | |
| S5M-370 | 370.0 | 74 | • | |
| S5M-375 | 375.0 | 75 | • | • |
| S5M-380 | 380.0 | 76 | • | |
| S5M-390 | 390.0 | 78 | • | • |
| S5M-400 | 400.0 | 80 | • | • |
| S5M-410 | 410.0 | 82 | • | • |
| S5M-415 | 415.0 | 83 | • | |
| S5M-420 | 420.0 | 84 | • | • |
| S5M-425 | 425.0 | 85 | • | • |
| S5M-435 | 435.0 | 87 | • | • |
| S5M-440 | 440.0 | 88 | • | |
| S5M-445 | 445.0 | 89 | • | |
| S5M-450 | 450.0 | 90 | • | • |
| S5M-475 | 475.0 | 95 | • | • |
| S5M-490 | 490.0 | 98 | • | • |
| S5M-495 | 495.0 | 99 | • | |
| S5M-500 | 500.0 | 100 | • | • |
| S5M-520 | 520.0 | 104 | • | • |
| S5M-525 | 525.0 | 105 | • | • |
| S5M-530 | 530.0 | 106 | • | |
| S5M-545 | 545.0 | 109 | • | |
| S5M-550 | 550.0 | 110 | • | |
| S5M-560 | 560.0 | 112 | • | • |
| S5M-565 | 565.0 | 113 | • | • |
| S5M-570 | 570.0 | 114 | • | |
| S5M-575 | 575.0 | 115 | • | • |
| S5M-590 | 590.0 | 118 | • | |
| S5M-595 | 595.0 | 119 | • | |
| S5M-600 | 600.0 | 120 | • | • |
| S5M-615 | 615.0 | 123 | • | |
| S5M-625 | 625.0 | 125 | • | • |
| S5M-635 | 635.0 | 127 | • | • |
| S5M-640 | 640.0 | 128 | • | |
| S5M-645 | 645.0 | 129 | • | |
| S5M-650 | 650.0 | 130 | • | • |
| S5M-655 | 655.0 | 131 | • | |
| S5M-665 | 665.0 | 133 | • | • |
| S5M-670 | 670.0 | 134 | • | • |
| S5M-675 | 675.0 | 135 | • | • |
| S5M-690 | 690.0 | 138 | • | |
| S5M-695 | 695.0 | 139 | • | |
| S5M-700 | 700.0 | 140 | • | • |
| S5M-710 | 710.0 | 142 | • | |
| S5M-720 | 720.0 | 144 | • | |
| S5M-725 | 725.0 | 145 | • | |
| S5M-730 | 730.0 | 146 | • | |
| S5M-740 | 740.0 | 148 | • | |
| S5M-750 | 750.0 | 150 | • | • |
| S5M-765 | 765.0 | 153 | • | • |
| S5M-770 | 770.0 | 154 | • | |
| S5M-775 | 775.0 | 155 | • | |
| S5M-780 | 780.0 | 156 | • | • |
| S5M-800 | 800.0 | 160 | • | • |
| S5M-810 | 810.0 | 162 | • | • |
| S5M-825 | 825.0 | 165 | • | |
| S5M-830 | 830.0 | 166 | • | • |
| S5M-835 | 835.0 | 167 | • | |
| S5M-845 | 845.0 | 169 | • | |
| S5M-850 | 850.0 | 170 | • | • |
| S5M-860 | 860.0 | 172 | • | |
| S5M-870 | 870.0 | 174 | • | |
| S5M-890 | 890.0 | 178 | • | • |
| S5M-900 | 900.0 | 180 | • | • |
| S5M-920 | 920.0 | 184 | • | |
| S5M-930 | 930.0 | 186 | • | |
| S5M-940 | 940.0 | 188 | • | |
| S5M-950 | 950.0 | 190 | • | • |
| S5M-965 | 965.0 | 193 | • | |
| S5M-975 | 975.0 | 195 | • | • |
| S5M-1000 | 1000.0 | 200 | • | • |
| S5M-1025 | 1025.0 | 205 | • | |
| S5M-1050 | 1050.0 | 210 | • | • |
| S5M-1055 | 1055.0 | 211 | • | |
| S5M-1085 | 1085.0 | 217 | • | |
| S5M-1090 | 1090.0 | 218 | • | |
| S5M-1100 | 1100.0 | 220 | • | • |
| S5M-1105 | 1105.0 | 221 | • | |
| S5M-1115 | 1115.0 | 223 | • | |
| S5M-1120 | 1120.0 | 224 | • | |
| S5M-1125 | 1125.0 | 225 | • | • |
| S5M-1135 | 1135.0 | 227 | • | |
| S5M-1145 | 1145.0 | 229 | • | • |
| S5M-1160 | 1160.0 | 232 | • | |
| S5M-1165 | 1165.0 | 233 | • | |
| S5M-1195 | 1195.0 | 239 | • | |
| S5M-1225 | 1225.0 | 245 | • | • |
| S5M-1250 | 1250.0 | 250 | • | |
| S5M-1260 | 1260.0 | 252 | • | |
| S5M-1270 | 1270.0 | 254 | • | • |
| S5M-1295 | 1295.0 | 259 | • | |
| S5M-1330 | 1330.0 | 266 | • | |
| S5M-1350 | 1350.0 | 270 | • | • |
| S5M-1420 | 1420.0 | 284 | • | • |
| S5M-1475 | 1475.0 | 295 | • | |
| S5M-1500 | 1500.0 | 300 | • | |
| S5M-1505 | 1505.0 | 301 | • | |
| S5M-1530 | 1530.0 | 306 | • | |
| S5M-1595 | 1595.0 | 319 | • | |
| S5M-1605 | 1605.0 | 321 | • | |
| S5M-1680 | 1680.0 | 336 | • | |
| S5M-1715 | 1715.0 | 343 | • | |
| S5M-1800 | 1800.0 | 360 | • | • |
| S5M-2000 | 2000.0 | 400 | • | • |
| S5M-3070 | 3070.0 | 614 | • | |
| S5M-4000 | 4000.0 | 800 | • |
模具列表不定期更新，設計前請先聯絡確認
