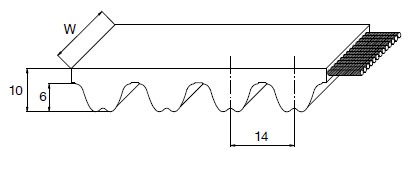

尺寸與型號表示
| 2100 | - | RPP14 | - | 55 |
|---|---|---|---|---|
| 長度mm | 規格 | 寬度mm |
產品規格
品牌：M-MEGADYNE T-TIMKEN
| 規格 | 長度(mm) | 齒數 | M | T |
|---|---|---|---|---|
| 966-RPP14 | 966.0 | 69 | • | |
| 994-RPP14 | 994.0 | 71 | • | |
| 1064-RPP14 | 1064.0 | 76 | • | |
| 1092-RPP14 | 1092.0 | 78 | • | |
| 1106-RPP14 | 1106.0 | 79 | • | |
| 1120-RPP14 | 1120.0 | 80 | • | |
| 1190-RPP14 | 1190.0 | 85 | • | |
| 1260-RPP14 | 1260.0 | 90 | • | |
| 1288-RPP14 | 1288.0 | 92 | • | • |
| 1344-RPP14 | 1344.0 | 96 | • | • |
| 1400-RPP14 | 1400.0 | 100 | • | |
| 1442-RPP14 | 1442.0 | 103 | • | |
| 1512-RPP14 | 1512.0 | 108 | • | |
| 1568-RPP14 | 1568.0 | 112 | • | |
| 1610-RPP14 | 1610.0 | 115 | • | • |
| 1750-RPP14 | 1750.0 | 125 | • | |
| 1764-RPP14 | 1764.0 | 126 | • | • |
| 1778-RPP14 | 1778.0 | 127 | • | |
| 1848-RPP14 | 1848.0 | 132 | • | |
| 1890-RPP14 | 1890.0 | 135 | • | |
| 1904-RPP14 | 1904.0 | 136 | • | |
| 1960-RPP14 | 1960.0 | 140 | • | |
| 2100-RPP14 | 2100.0 | 150 | • | • |
| 2240-RPP14 | 2240.0 | 160 | • | |
| 2310-RPP14 | 2310.0 | 165 | • | |
| 2380-RPP14 | 2380.0 | 170 | • | |
| 2450-RPP14 | 2450.0 | 175 | • | |
| 2520-RPP14 | 2520.0 | 180 | • | |
| 2590-RPP14 | 2590.0 | 185 | • | • |
| 2660-RPP14 | 2660.0 | 190 | • | |
| 2800-RPP14 | 2800.0 | 200 | • | • |
| 2968-RPP14 | 2968.0 | 212 | • | |
| 3136-RPP14 | 3136.0 | 224 | • | |
| 3150-RPP14 | 3150.0 | 225 | • | • |
| 3304-RPP14 | 3304.0 | 236 | • | |
| 3360-RPP14 | 3360.0 | 240 | • | • |
| 3500-RPP14 | 3500.0 | 250 | • | • |
| 3850-RPP14 | 3850.0 | 275 | • | • |
| 3920-RPP14 | 3920.0 | 280 | • | |
| 4326-RPP14 | 4326.0 | 309 | • | • |
| 4410-RPP14 | 4410.0 | 315 | • | |
| 4578-RPP14 | 4578.0 | 327 | • | |
| 4956-RPP14 | 4956.0 | 354 | • |
模具列表不定期更新，設計前請先聯絡確認
