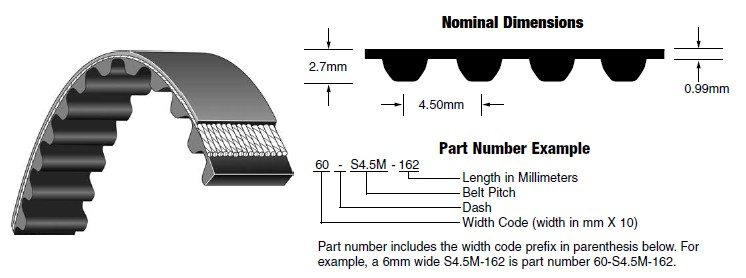

尺寸與型號表示
產品規格
品牌：B-BANDO T-TIMKEN
| 規格 | 長度(mm) | 齒數 | B | T |
|---|---|---|---|---|
| S4.5M-162 | 162.0 | 36 | • | |
| S4.5M-180 | 180.0 | 40 | • | • |
| S4.5M-198 | 198.0 | 44 | • | • |
| S4.5M-225 | 225.0 | 50 | • | • |
| S4.5M-239 | 239.0 | 53 | • | • |
| S4.5M-252 | 252.0 | 56 | • | • |
| S4.5M-275 | 275.0 | 61 | • | |
| S4.5M-279 | 279.0 | 62 | • | • |
| S4.5M-284 | 284.0 | 63 | • | • |
| S4.5M-297 | 297.0 | 66 | • | |
| S4.5M-315 | 315.0 | 70 | • | • |
| S4.5M-324 | 324.0 | 72 | • | |
| S4.5M-329 | 329.0 | 73 | • | |
| S4.5M-333 | 333.0 | 74 | • | |
| S4.5M-338 | 338.0 | 75 | • | |
| S4.5M-342 | 342.0 | 76 | • | |
| S4.5M-351 | 351.0 | 78 | • | • |
| S4.5M-360 | 360.0 | 80 | • | |
| S4.5M-369 | 369.0 | 82 | • | |
| S4.5M-382 | 382.0 | 85 | • | |
| S4.5M-383 | 383.0 | 85 | • | |
| S4.5M-387 | 387.0 | 86 | • | |
| S4.5M-396 | 396.0 | 88 | • | • |
| S4.5M-414 | 414.0 | 92 | • | |
| S4.5M-437 | 437.0 | 97 | • | |
| S4.5M-450 | 450.0 | 100 | • | • |
| S4.5M-491 | 491.0 | 109 | • | |
| S4.5M-504 | 504.0 | 112 | • | • |
| S4.5M-518 | 518.0 | 115 | • | |
| S4.5M-558 | 558.0 | 124 | • | • |
| S4.5M-563 | 563.0 | 125 | • | • |
| S4.5M-612 | 612.0 | 136 | • | |
| S4.5M-630 | 630.0 | 140 | • | • |
| S4.5M-653 | 653.0 | 145 | • | |
| S4.5M-711 | 711.0 | 158 | • | • |
| S4.5M-729 | 729.0 | 162 | • | |
| S4.5M-801 | 801.0 | 178 | • | |
| S4.5M-864 | 864.0 | 192 | • | |
| S4.5M-905 | 905.0 | 201 | • | |
| S4.5M-932 | 932.0 | 207 | • | |
| S4.5M-1031 | 1031.0 | 229 | • | |
| S4.5M-2111 | 2111.0 | 469 | • |
模具列表不定期更新，設計前請先聯絡確認
