D14M

尺寸與型號表示

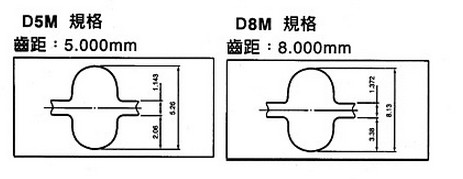

D14M 產品參考圖 1

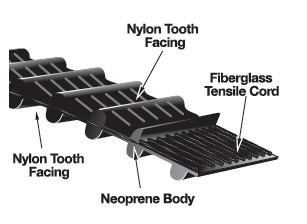

D14M 產品參考圖 2
皮帶表示方法：
1960-D14M20
長度mm規格寬mm

產品規格

品牌：G-GATES T-TIMKEN

d14m 產品規格
規格長度(mm)齒數GT
1344-D14M1344.096•
1400-D14M1400.0100••
1414-D14M1414.0101•
1442-D14M1442.0103•
1456-D14M1456.0104••
1470-D14M1470.0105•
1484-D14M1484.0106•
1512-D14M1512.0108••
1540-D14M1540.0110••
1568-D14M1568.0112••
1610-D14M1610.0115••
1638-D14M1638.0117•
1652-D14M1652.0118••
1680-D14M1680.0120•
1736-D14M1736.0124•
1750-D14M1750.0125•
1764-D14M1764.0126•
1778-D14M1778.0127••
1792-D14M1792.0128•
1806-D14M1806.0129•
1820-D14M1820.0130•
1890-D14M1890.0135••
1932-D14M1932.0138••
1946-D14M1946.0139••
1960-D14M1960.0140•
2002-D14M2002.0143••
2100-D14M2100.0150••
2198-D14M2198.0157•
2240-D14M2240.0160•
2310-D14M2310.0165••
2450-D14M2450.0175••
2590-D14M2590.0185••
2660-D14M2660.0190••
2716-D14M2716.0194•
2800-D14M2800.0200••
2940-D14M2940.0210•
3108-D14M3108.0222•
3150-D14M3150.0225••
3304-D14M3304.0236•
3360-D14M3360.0240••
3500-D14M3500.0250••
3668-D14M3668.0262•
3850-D14M3850.0275••
4326-D14M4326.0309••
4536-D14M4536.0324•
4578-D14M4578.0327••
4760-D14M4760.0340•
4956-D14M4956.0354••
5040-D14M5040.0360•
5320-D14M5320.0380••
5600-D14M5600.0400•
5740-D14M5740.0410••
5936-D14M5936.0424•
6160-D14M6160.0440••
6860-D14M6860.0490••

模具列表不定期更新，設計前請先聯絡確認
