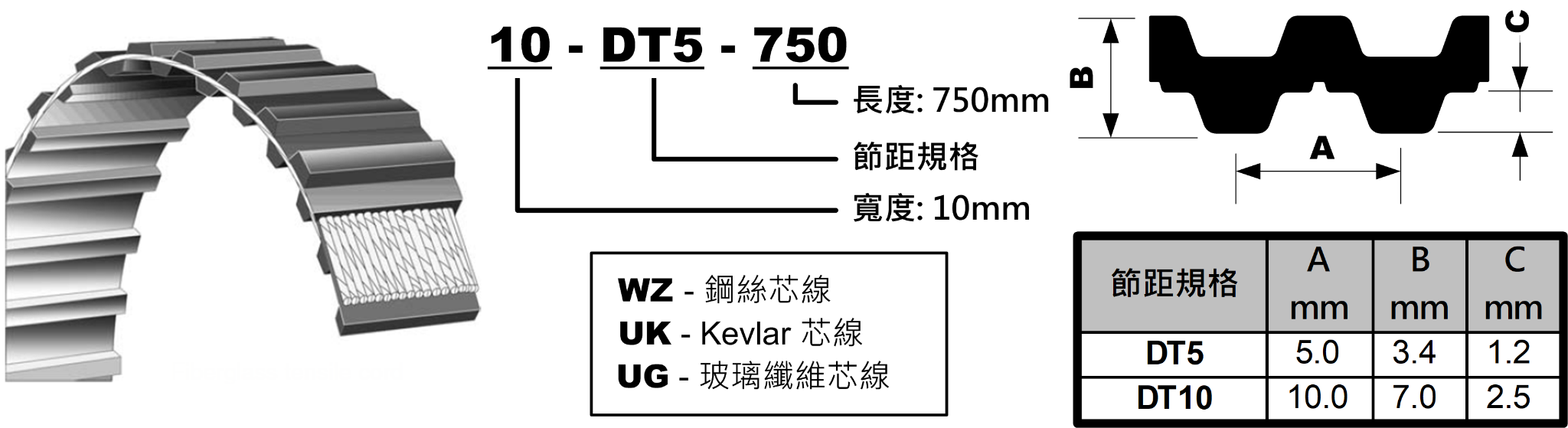

尺寸與型號表示
產品規格
品牌：B-BANDO M-MEGADYNE E-ELATECH O-OTHER
| 規格 | 長度(mm) | 齒數 | B | M | E | O |
|---|---|---|---|---|---|---|
| DT5-260 | 260.0 | 52 | • | |||
| DT5-300 | 300.0 | 60 | • | |||
| DT5-410 | 410.0 | 82 | • | • | • | |
| DT5-460 | 460.0 | 92 | • | • | • | |
| DT5-480 | 480.0 | 96 | • | |||
| DT5-515 | 515.0 | 103 | • | • | ||
| DT5-525 | 525.0 | 105 | • | |||
| DT5-530 | 530.0 | 106 | • | |||
| DT5-550 | 550.0 | 110 | • | • | ||
| DT5-590 | 590.0 | 118 | • | • | • | |
| DT5-620 | 620.0 | 124 | • | • | • | |
| DT5-625 | 625.0 | 125 | • | |||
| DT5-650 | 650.0 | 130 | • | • | ||
| DT5-685 | 685.0 | 137 | • | |||
| DT5-700 | 700.0 | 140 | • | • | ||
| DT5-750 | 750.0 | 150 | • | • | • | |
| DT5-755 | 755.0 | 151 | • | |||
| DT5-775 | 775.0 | 155 | • | |||
| DT5-800 | 800.0 | 160 | • | • | ||
| DT5-815 | 815.0 | 163 | • | • | • | |
| DT5-840 | 840.0 | 168 | • | • | ||
| DT5-850 | 850.0 | 170 | • | |||
| DT5-860 | 860.0 | 172 | • | • | • | |
| DT5-900 | 900.0 | 180 | • | |||
| DT5-940 | 940.0 | 188 | • | • | • | |
| DT5-1075 | 1075.0 | 215 | • | • | ||
| DT5-1100 | 1100.0 | 220 | • | • | • | |
| DT5-1160 | 1160.0 | 232 | • | |||
| DT5-1325 | 1325.0 | 265 | • | |||
| DT5-1350 | 1350.0 | 270 | • | |||
| DT5-1520 | 1520.0 | 304 | • | |||
| DT5-1700 | 1700.0 | 340 | • |
模具列表不定期更新，設計前請先聯絡確認
