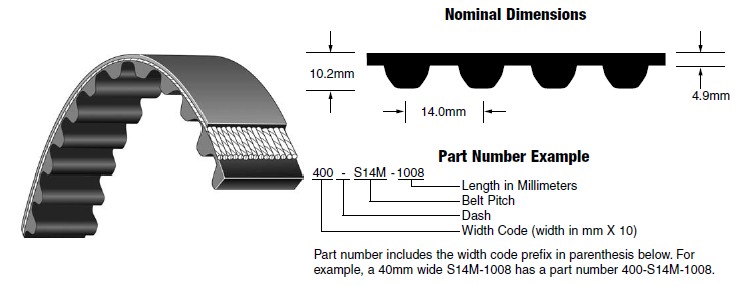

尺寸與型號表示
產品規格
品牌：B-BANDO T-TIMKEN
| 規格 | 長度(mm) | 齒數 | B | T |
|---|---|---|---|---|
| S14M-714 | 714.0 | 51 | • | |
| S14M-994 | 994.0 | 71 | • | |
| S14M-1008 | 1008.0 | 72 | • | • |
| S14M-1036 | 1036.0 | 74 | • | |
| S14M-1120 | 1120.0 | 80 | • | • |
| S14M-1190 | 1190.0 | 85 | • | • |
| S14M-1246 | 1246.0 | 89 | • | • |
| S14M-1260 | 1260.0 | 90 | • | |
| S14M-1344 | 1344.0 | 96 | • | |
| S14M-1358 | 1358.0 | 97 | • | |
| S14M-1400 | 1400.0 | 100 | • | • |
| S14M-1456 | 1456.0 | 104 | • | |
| S14M-1470 | 1470.0 | 105 | • | |
| S14M-1512 | 1512.0 | 108 | • | |
| S14M-1540 | 1540.0 | 110 | • | • |
| S14M-1568 | 1568.0 | 112 | • | |
| S14M-1610 | 1610.0 | 115 | • | • |
| S14M-1652 | 1652.0 | 118 | • | • |
| S14M-1708 | 1708.0 | 122 | • | |
| S14M-1750 | 1750.0 | 125 | • | • |
| S14M-1778 | 1778.0 | 127 | • | |
| S14M-1806 | 1806.0 | 129 | • | • |
| S14M-1848 | 1848.0 | 132 | • | |
| S14M-1890 | 1890.0 | 135 | • | • |
| S14M-1904 | 1904.0 | 136 | • | |
| S14M-1960 | 1960.0 | 140 | • | • |
| S14M-2002 | 2002.0 | 143 | • | • |
| S14M-2100 | 2100.0 | 150 | • | • |
| S14M-2198 | 2198.0 | 157 | • | |
| S14M-2240 | 2240.0 | 160 | • | • |
| S14M-2310 | 2310.0 | 165 | • | • |
| S14M-2380 | 2380.0 | 170 | • | • |
| S14M-2450 | 2450.0 | 175 | • | • |
| S14M-2506 | 2506.0 | 179 | • | • |
| S14M-2590 | 2590.0 | 185 | • | • |
| S14M-2660 | 2660.0 | 190 | • | • |
| S14M-2800 | 2800.0 | 200 | • | • |
| S14M-2814 | 2814.0 | 201 | • | |
| S14M-3150 | 3150.0 | 225 | • | • |
| S14M-3248 | 3248.0 | 232 | • | |
| S14M-3500 | 3500.0 | 250 | • | • |
| S14M-3556 | 3556.0 | 254 | • | |
| S14M-3850 | 3850.0 | 275 | • | • |
| S14M-4004 | 4004.0 | 286 | • | • |
| S14M-4060 | 4060.0 | 290 | • | |
| S14M-4326 | 4326.0 | 309 | • | |
| S14M-4410 | 4410.0 | 315 | • | |
| S14M-4508 | 4508.0 | 322 | • | • |
| S14M-5012 | 5012.0 | 358 | • | • |
模具列表不定期更新，設計前請先聯絡確認
