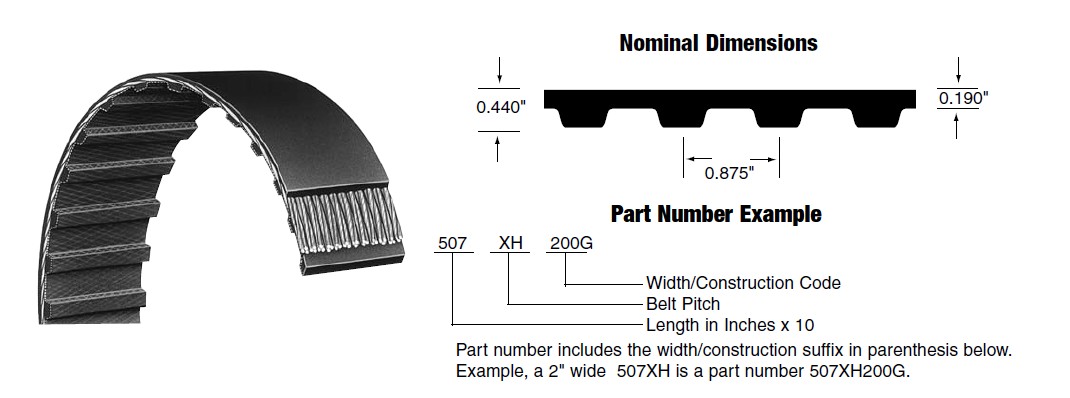

尺寸與型號表示
產品規格
品牌：B-BANDO G-GATES T-TIMKEN
| 規格 | 長度(in) | 齒數 | B | G | T |
|---|---|---|---|---|---|
| 463-XH | 46.3 | 53 | • | ||
| 481-XH | 48.1 | 55 | • | ||
| 507-XH | 50.7 | 58 | • | • | • |
| 560-XH | 56.0 | 64 | • | • | • |
| 570-XH | 57.0 | 65 | • | ||
| 580-XH | 58.0 | 66 | • | ||
| 604-XH | 60.4 | 69 | • | ||
| 630-XH | 63.0 | 72 | • | • | • |
| 647-XH | 64.7 | 74 | • | ||
| 700-XH | 70.0 | 80 | • | • | • |
| 710-XH | 71.0 | 81 | • | ||
| 735-XH | 73.5 | 84 | • | • | |
| 752-XH | 75.2 | 86 | • | ||
| 770-XH | 77.0 | 88 | • | • | • |
| 787-XH | 78.7 | 90 | • | ||
| 800-XH | 80.0 | 91 | • | ||
| 805-XH | 80.5 | 92 | • | ||
| 831-XH | 83.1 | 95 | • | • | |
| 840-XH | 84.0 | 96 | • | • | • |
| 850-XH | 85.0 | 97 | • | ||
| 875-XH | 87.5 | 100 | • | • | |
| 901-XH | 90.1 | 103 | • | ||
| 910-XH | 91.0 | 104 | • | ||
| 919-XH | 91.9 | 105 | • | ||
| 927-XH | 92.7 | 106 | • | • | |
| 980-XH | 98.0 | 112 | • | • | • |
| 1000-XH | 100.0 | 114 | • | ||
| 1120-XH | 112.0 | 128 | • | • | • |
| 1200-XH | 120.0 | 137 | • | ||
| 1260-XH | 126.0 | 144 | • | • | • |
| 1400-XH | 140.0 | 160 | • | • | • |
| 1540-XH | 154.0 | 176 | • | • | • |
| 1575-XH | 157.5 | 180 | • | ||
| 1680-XH | 168.0 | 192 | • | ||
| 1750-XH | 175.0 | 200 | • | • | • |
| 1873-XH | 187.3 | 214 | • | ||
| 2275-XH | 227.5 | 260 | • |
模具列表不定期更新，設計前請先聯絡確認
